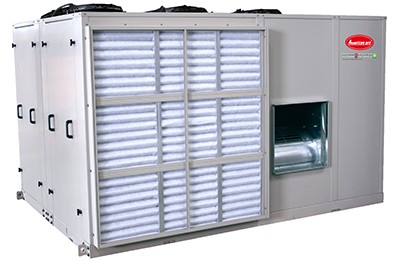

American Pro® Rooftop Units TITAN II AP.BDQTF Series models are single package high-efficiency rooftop packaged units. The units are designed to fit all applications, they can also be slab mounted at ground level or set on steel beams above a finished roof. All TITAN II models are convertible between bottom and side duct connections.

American Pro rooftop units are manufactured using the latest technology to provide maximum comfort and energy efficiency for cooling your applications.

American Pro rooftop units proved reheat technology to provide the temperature and humidity levels you need.

With easy setup and operation. American pro rooftop units are suited for your commercial cooling and heating needs, American Pro rooftops units increase performance and reduce costs of your electric bill.

The AP.BDQTF Series with new features is suitable for, hotels, Villas, Apartments building hospitals, schools, Factory and Supermarket apartments building, mall applications.

The low noise and compact series are completely leak tested, evacuated, dehydrated, and charged with refrigerant prior to shipment. Cooling Capacity: 3 to 115 Ton (11 to 407 kW) 50/60Hz.Heating Capacity: 3.4 to 108 Ton (12 to 380 kW)R410a/R407C







GENERAL DESCRIPTION

The AP.BDQTF-Q Series with new features is suitable for hotel, office, hospital, school, factory and supermarket applications.

The low noise and compact series are completely leak tested, evacuated, dehydrated and charged with refrigerant prior to shipment.



REFRIGERANT R41OA

■      AP.BDQTF-Q Series uses the environmentally friendly refrigerant, R410A in each system.

■     Zero ozone depletion potential.



HERMETIC SCRDLL COMPRESSOR(S]

Reliability

■     No contact scroll design that minimizes friction, increases volumetric efficiency and reduces vibration, thus longer service life.

■     Suction pas cooled motor.

Low Power Consumption:

■     High EER.

■      No crankcase heater required.



CLASS F INSULATION CONDENSER FAN MOTOR

■     Extra safety margin and longer motor life even in extreme operating conditions.

■     IP 55 construction ensure extra motor protection (AP.BDQTF-68Q Series to 1520Q).

■      Low motor speed at 950 rpm ensures quiet condenser fan operation.



MULTIPLE COMPRESSOR (AP.BDOTF-2500 Series and above]

■     By cycling off compressor operation to match building load, no energy is being wasted when room load requires lesser cooling capacity.

■     No total shut down when servicing or repairing a faulty compressor.



EFFICIENT CONDENSER COIL

■     Staggered row of 3/8”OD inner groove tubes with 25 to 30% more surface area guarantee better heat transfer.

■     Mechanically expanded into die-formed corrugated aluminum fins.

■    Integral sub cooling circuit to maximize efficiency.

■     One or multiple thermal expansion valve promotes efficient cooling and superheat during reverse cycle.

■     Leak and pressure tested to 650 psig.



SAFETY CONTROL

■        High-low pressure cutout to protect compressor from high discharge pressure and system leakage.



FULLY LEAK TESTED REFRIGERANT CIRCUIT

■        Compressors, condenser coil, filter drier, sight-glass. thermo-expansion valve, distributor and evaporator coil is brazed in complete sealed loop.

■         Leak and pressure tested at 650 psig.

■      Pressure ports are provided on the discharge, liquid and suction line.

■      Evacuated, dehydrated and charge with refrigerant pas prior to shipment.



CASING

■        Constructed from heavy gauge galvanized steel.

■        Panels are painted with epoxy powder paint for excellent finish, weather-ability and corrosion resistance.

■        Evaporator section is insulated with 1 x 1 1/2 lb per.cu.ft of linacoustic fiberglass.



EFFICIENT EVAPORATOR COIL

■        Independent thermal expansion valve with external equalizer for better refrigerant control and wider load condition.

■        Leak and pressure tested to 650 psig

■        Evacuated, dehydrated and charged with refrigerant gas.



DRIVE PACKAGE AND BLOWERS

■        Belt driven drive package offers flexibility on various air flow

rate and various static pressure applications (AP.BDQTF-160Q Series and above).

■        Single large diameter double inlet double width blowers (AMCA certified) reduce the noise level and eliminates the need for common transition and eliminates air unbalance.



FILTERS

■          1”thick with side loading for AP.BDQTF-40Q Series to 145Q.

■         2”thick with side loading for AP.BDQTF-160Q Series and above



OPTIONAL ACCESSORIES



■        Factory wired starters

- DOL for compressors and fan motors.

■        Suction stop valve(s), discharge stop valve(s) and liquid stop valve(s).

■        Fan staging (AP.BDQTF-160Q Series and above) of multiple fans for head pressure control.

■        Thermostat.

■        Hydrophilic fins or copper fins for better corrosion resistance.

■        Hot gas by pass for low led and low ambient conditions.

■        Hot water heating coils.

■        Electric heaters.
