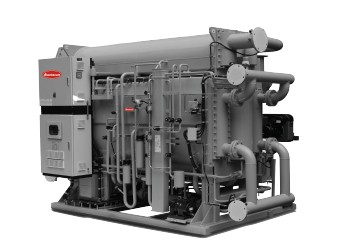

American pro® Absorption Chiller Direct Fired

American pro® Absorption Chiller Direct Fired

2V2KC

,

2V2LC

,

2V2MC

,

2V2NC

,

2V3KC

,

2V3LC

,

2V3MC

,

2V4KC

,

2V4LC2V4MC

,

2V5K C

,

2V5LC

,

2V5MC

,

2V5NC

,

2V6KC

,

2V6LC

,

2V7KC

,

2V7LC

,

2V7MC

Double effect steam-driven absorption machines are one of the most efficient cooling solutions for industrial applications.

In the double effect machines, the gain in concentration is achieved in two steps.

The primary generator (referred as High-Temperature Generator or HTG) produces vapour, whose latent heat is transferred to lithium bromide in the secondary generator (referred as Low-Temperature Generator or LTG).

American Pro double effect absorption chillers are designed based on its proven Advanced Series Flow technology.

This ensures that the highest concentration and highest temperature of the Lithium Bromide solution don't occur simultaneously.

Due to this the rate of corrosion is negligible compared to the para flow or reverse flow technologies.

  • Operating Range

    • Capacities: From 50 to 2500 USRT (175– 8800 kW)
    • Heat source: Steam
    • Steam pressure: From 3.0 to 10.0 bar.g (43 to 140 psig)
    • Chilled water temperature: Up to 1ºC (34ºF) and -2ºC (28.5ºF) with brine
    • COP: 1.38 – 1.43

Resources

Specification:

Download

Wiring Diagram:

Download

Catalog:

Download
