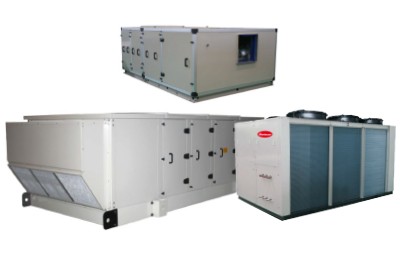

American pro® DX Split System

American pro® DX Split System

AP.BDDTY1900

,

AP.BDDTY1780

,

AP.BDDTY1520

,

AP.BDDTY1340

,

AP.BDDTY1140

,

AP.BDDTY1020

,

AP.BDDTY960

,

AP.BDDTY890

,

AP.BDDTY800 AP.BDDTY760

,

AP.BDDTY700

,

AP.BDDTY640

,

AP.BDDTY570

,

AP.BDDTY510

,

AP.BDDTY480

,

AP.BDDTY435

,

AP.BDDTY380

,

AP.BDDTY290 AP.BDDTY250

,

AP.BDDTY220

,

AP.BDDTY190

,

AP.BDDTY160

,

AP.BDDTY145

,

AP.BDDTY125

,

AP.BDDTY108

,

AP.BDDTY95

,

AP.BDDTY81 AP.BDDTY68

The American pro® DX  Split carry a 29 models from 6 to 146 Ton [20 to 514 kW]. Multiple compressors units provide redundancy and part load operation by cycling off  compressor operation to match building load.No total shut down when servicing compressor for units with dual refrigerant systems design. Unit design to allowed continuous operation up to 125f [52 C].

GENERAL

  • DX Split carry a 29 models from 6 to 146 Ton [20 to 514 kW].
  • Multiple compressors units provide redundancy and

part load operation by cycling off compressor

operation to match building load.

  • No total shut down when servicing compressor for

units with dual refrigerant systems design.

  • Unit design to allowed continuous operation up to

125 F [52 C].


COMPRESSOR(S)

  • Most reliable hermetic compact scroll.
  • No contact scroll design that.

minimizes friction, increases

volumetric efficiency and reduces

vibration, thus longer service life.

  • Suction gas cooled motor.
  • Compact and light with minimum wear and tear.
  • Unique ability to handle.

       liquid refrigerant.

  • Built-in thermal protectors to prevent motor.

overheating, loss of phase and low refrigerant or oil charge.

  • High EER.
  • No crankcase heater required at common operating conditions.


CONDENSER SECTION

Efficient Condenser Coil

  • Condenser coils are manufactured of staggered row

of 3/8”OD inner groove seamless cooper tube.

  • 25 to 30% more

surface areas which guarantee better heat transfer.

  • Mechanically

expanded into deformed corrugated bonded to aluminum fins.

  • Integral sub-cooling

circuit to maximize efficiency.

  • Factory leak and

pressure tested at 650 psig [45bar] for

  • R410A refrigerant.

Condenser Fans

  • IP55 enclosure.
  • Motor with Class“F” insulation permits higher
  • Operating ambient temperature conditions.
  • Low motor speed at 950 rpm @ 50Hz delivers quiet

condenser fan operation and superior sound level
